Product Name: Prism
Description: Wall Panelling
Function: Prism is a contemporary wall panelling system providing essential acoustic baffling for internal walls of offices, commercial and domestic spaces as well as giving visual impact and pinboard capability. 9mm soundproofing insulation achieves an NRC of approx 0.5

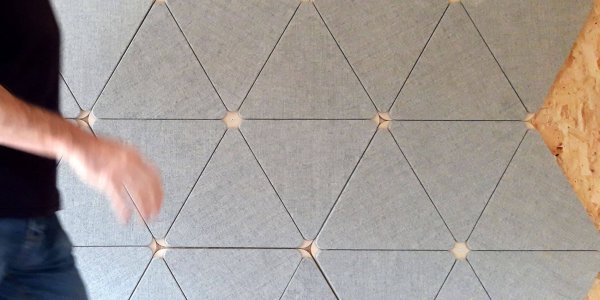

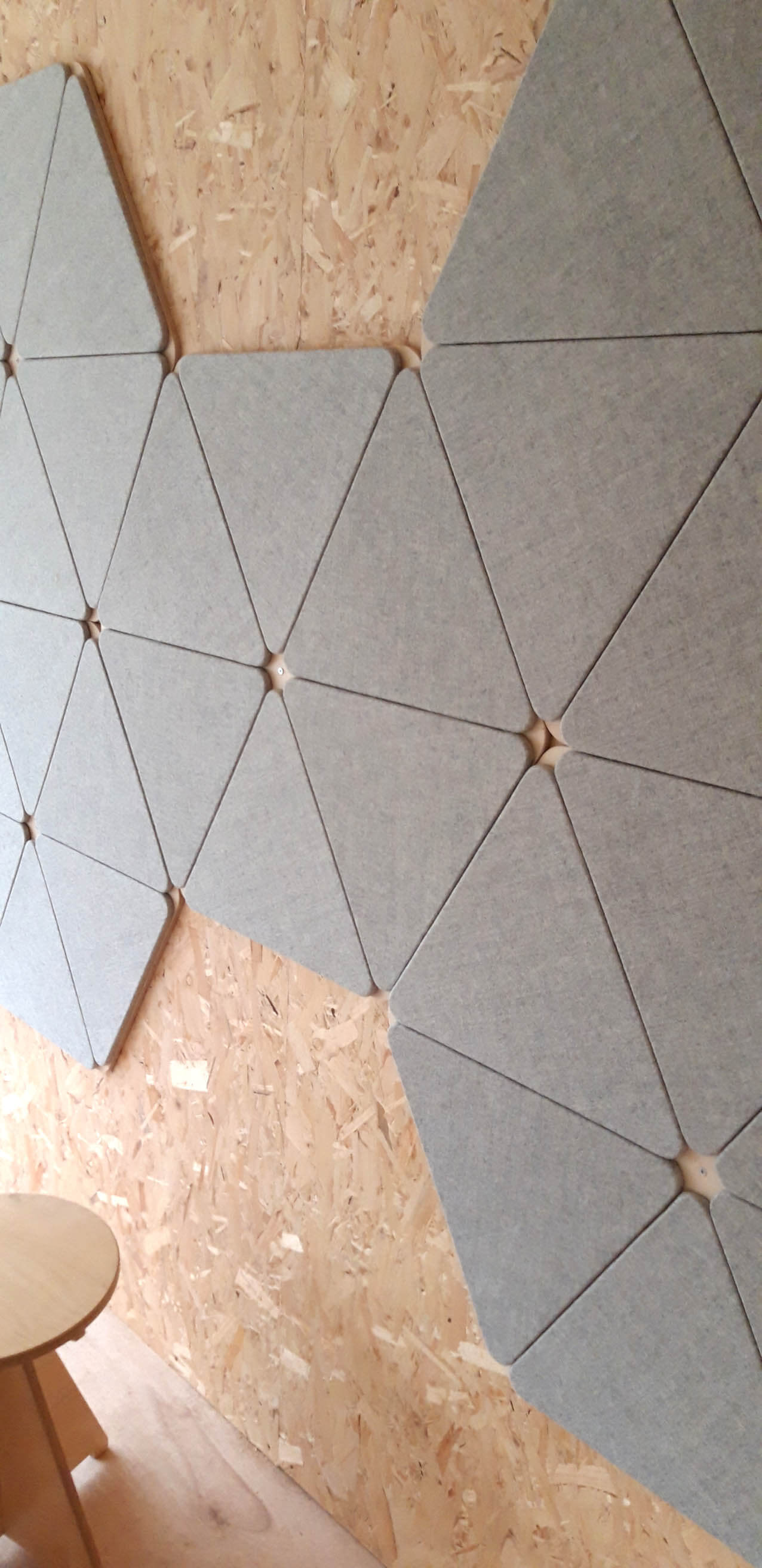

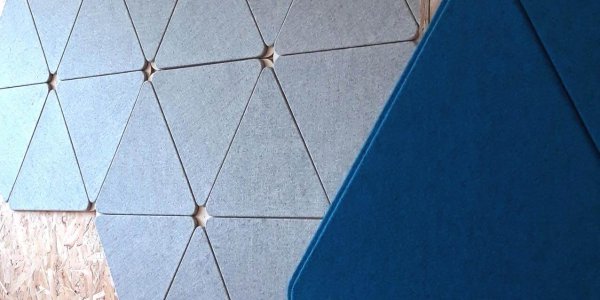

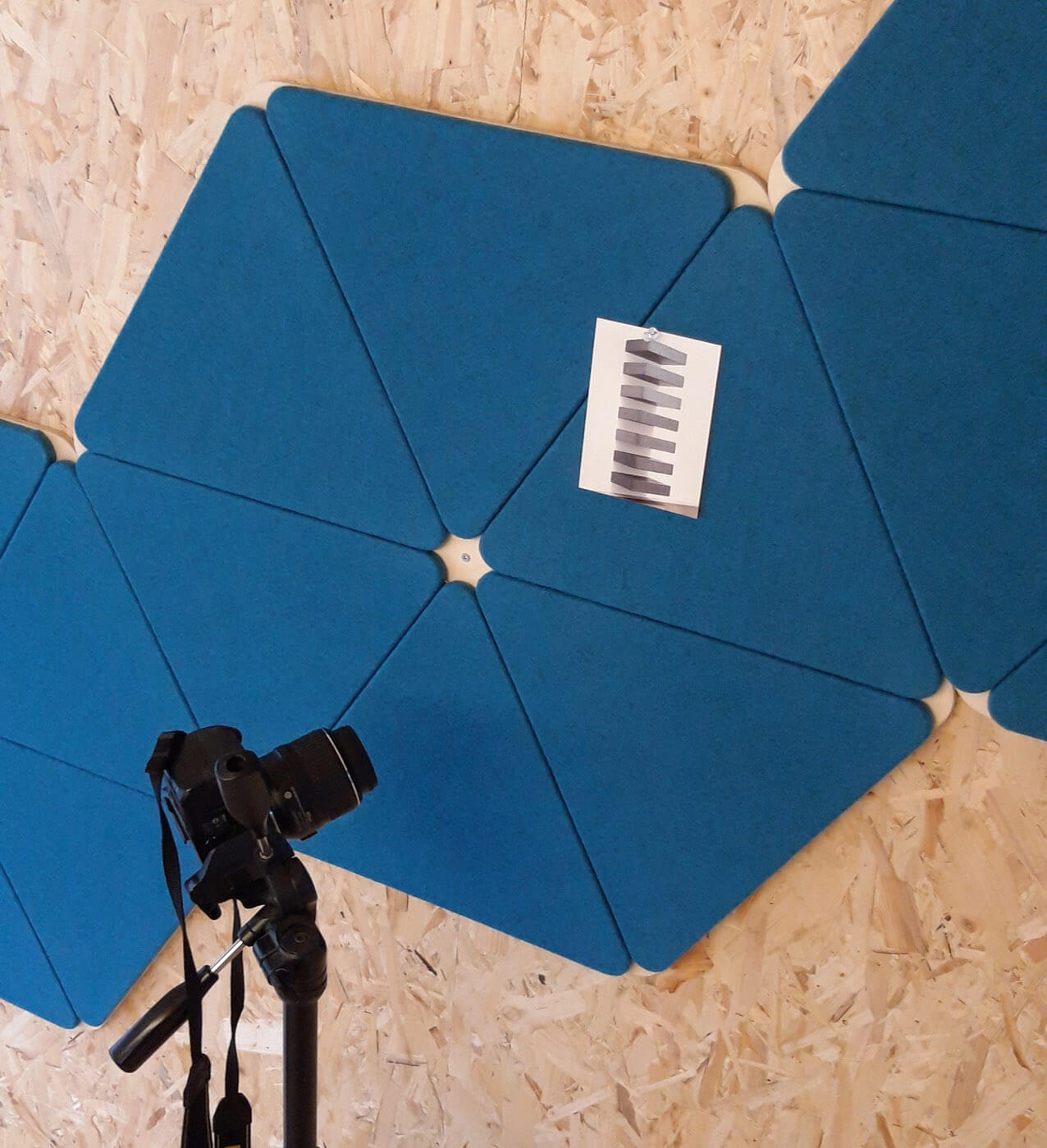

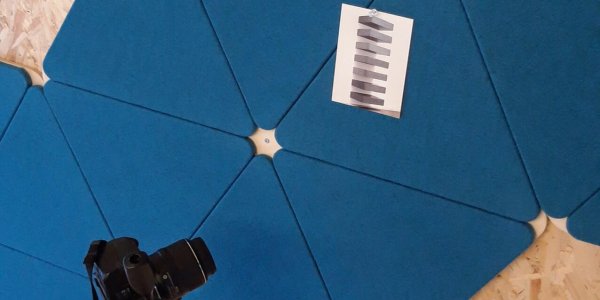

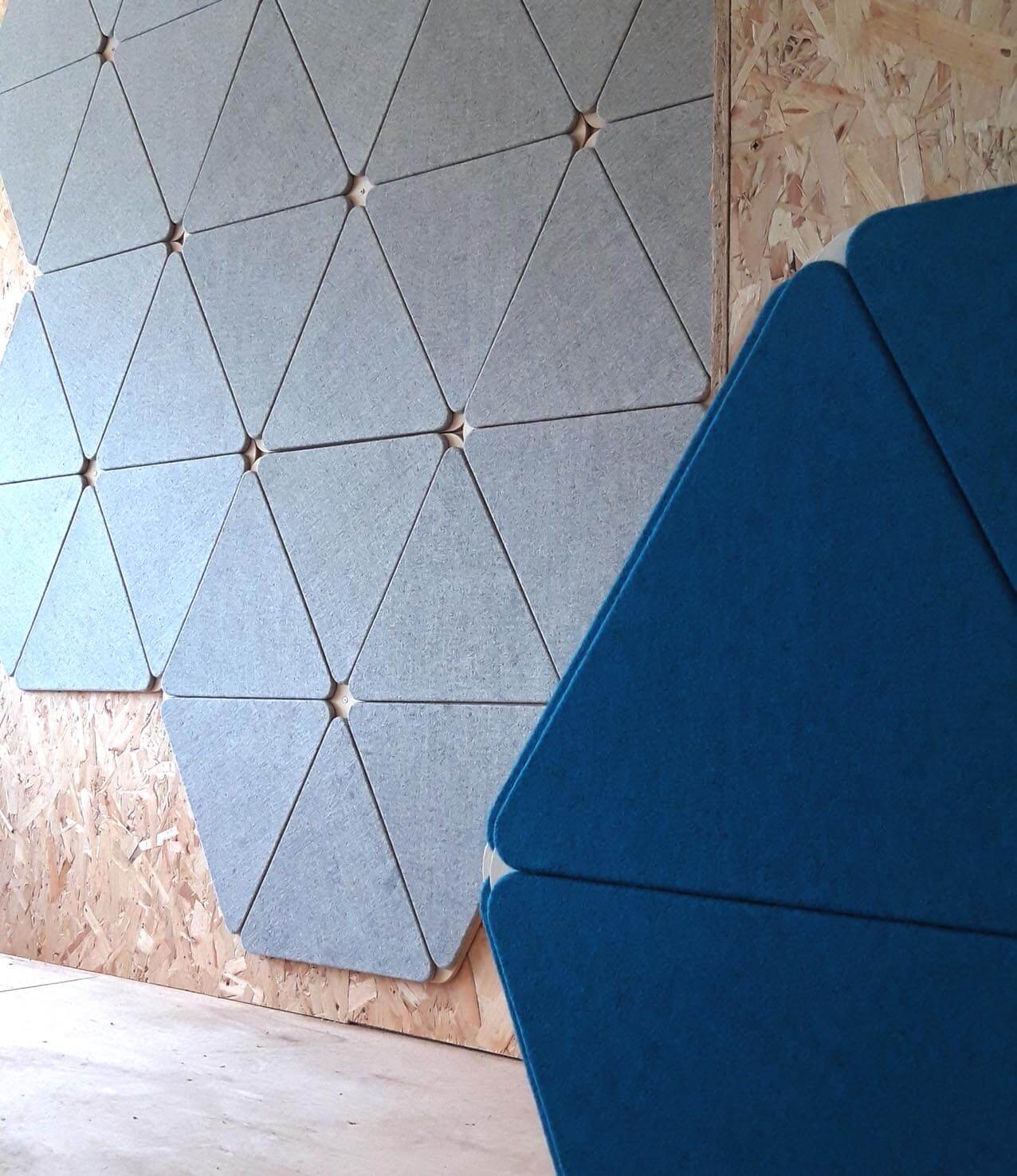

Uses: These panels can be used on their own or in multiples to cover an entire wall with lots of options including any colour in the Camira Blazer Wool collection. The cellulose fibreboard used in each triangle can also be used as a pinboard so is perfect for office presentation areas or as a domestic messaging board
Materials / Camira Blazer 100% Wool fabric, 100% Recycled Cellulose Fibreboard – No added VOC’s or solvent binding agents, Lacquered Birch Plywood
Finishes / Colours / See colour chart on web site for information. Natural satin lacquer on Birch Plywood as standard

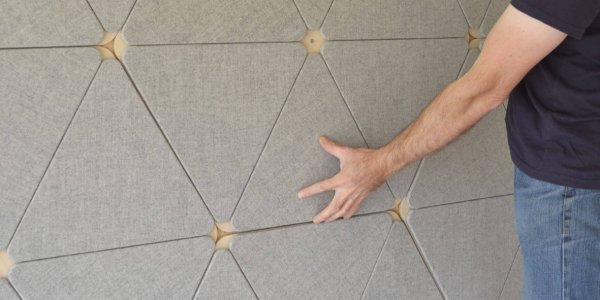

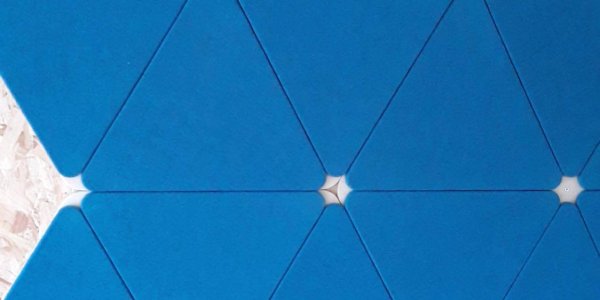

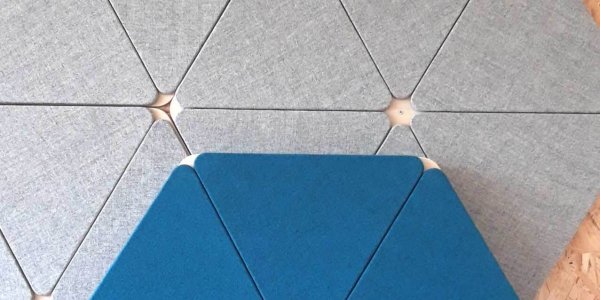

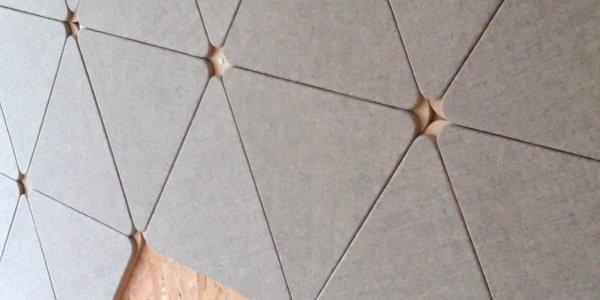

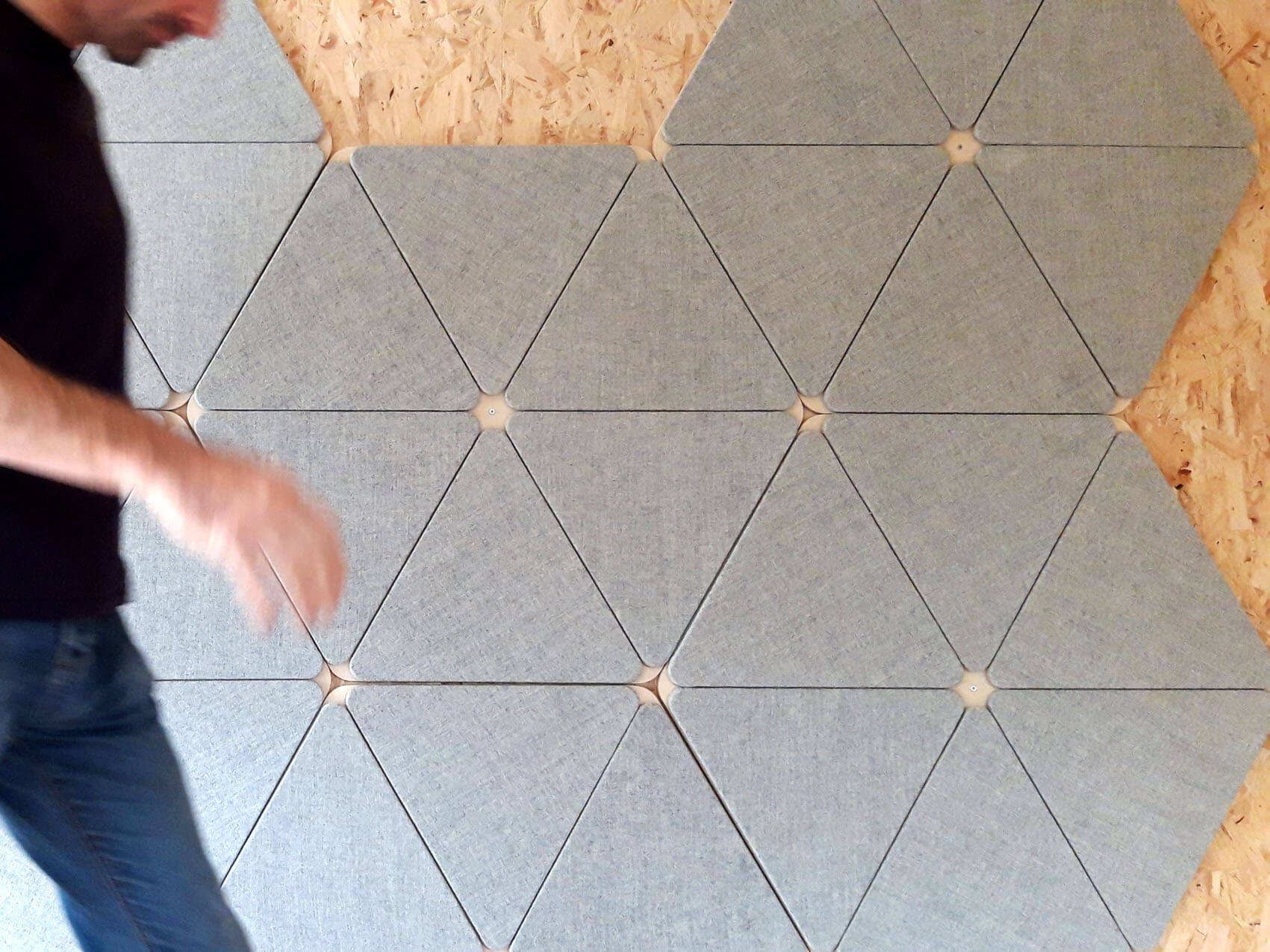

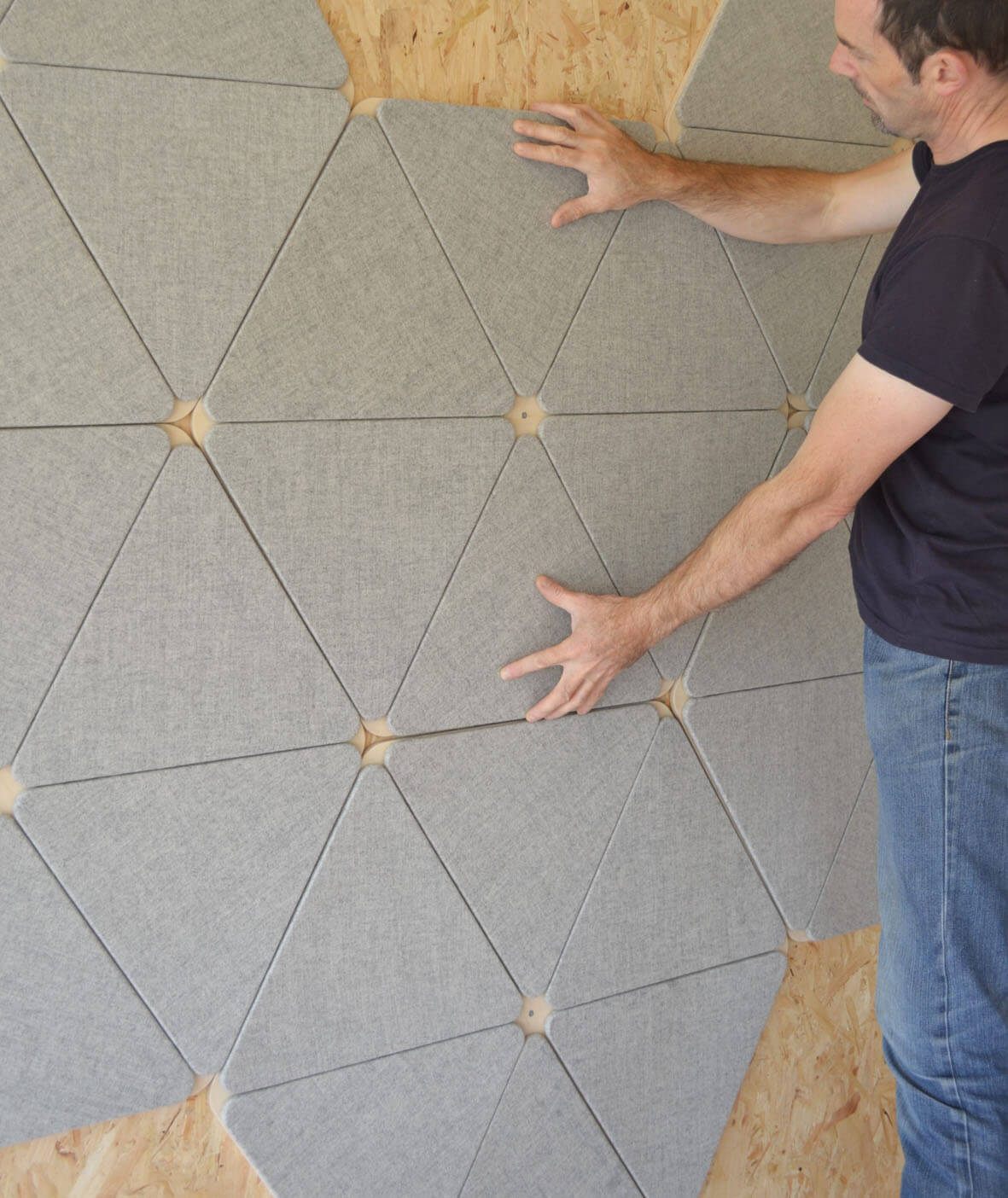

Fixing / A single screw fitting to the centre of each panel with a cover cap makes each panel very easy to fit, level and interchange. 6 triangles per board also means that larger areas can be covered quickly and effortlessly

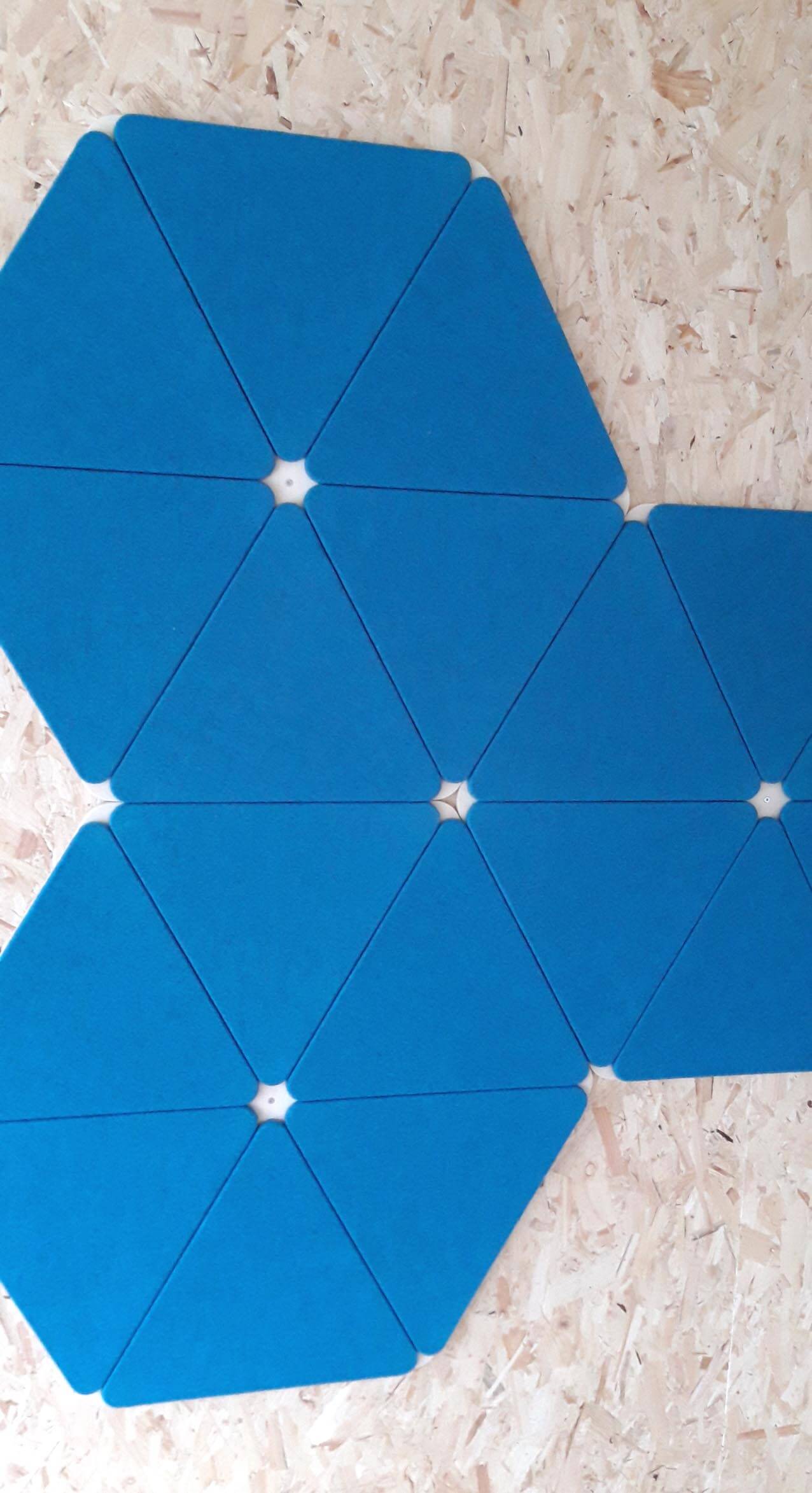

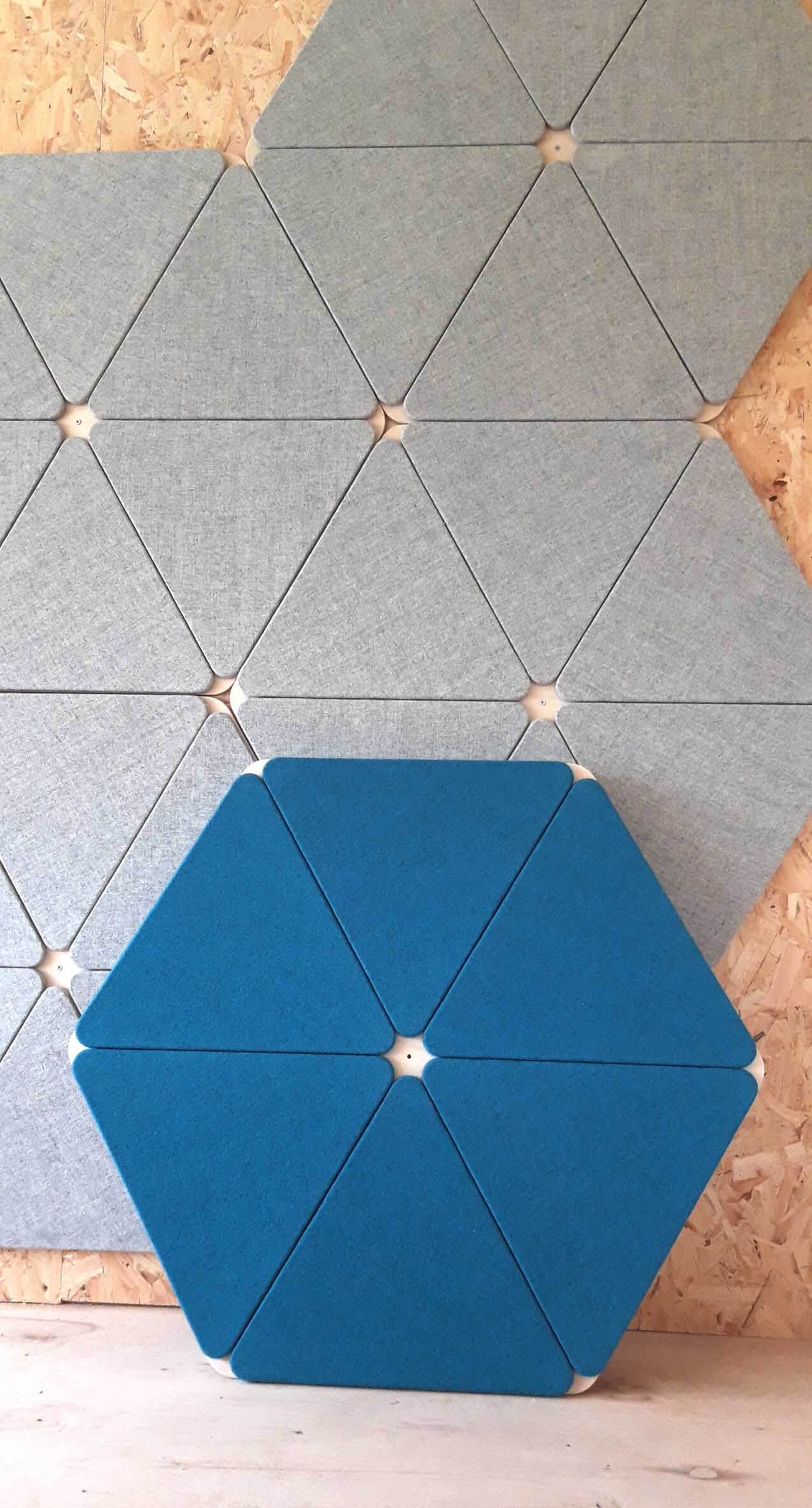

Dimensions/ HF28/1 H774mm W882mm D20mm – Single unit of 6 triangles
HF28/2 H387mm W882mm D20mm – Half unit of 3 triangles Drawing above shows 5no. units
Design/ Leo Scarff 2011-2018
Technical Sheet available here:
